نرم افزار HELIX DELTA CONVEYOR T6

HELIX delta-T for WINDOWS - Professional Version 6

Belt Conveyor Design Program

HELIX delta-T is a powerful computer software package developed to assist materials handling design engineers and equipment suppliers with conveyor design and optimisation. Helix Technologies' research and development of this software began in 1992 and delta-T now has more than a thousand users in 25 countries who depend on the program to provide consistent, accurate and cost effective belt conveyor and material handling designs. Features of the new delta-T version 6 program include:

• Automatic Selection of Belt and Tension, Power Calculations.

• Equipment Selection from Databases for Belts, Idlers, Pulleys & Shafts, Gearboxes, Motors, Fluid Couplings, Brakes etc.

• New Equipment databases for Shaft and Drive couplings and conveyor holdbacks have been added in version 6

• Draw a sketch of the conveyor Profile and also view a scale drawing and a 3D model of the conveyor - use Drag and Drop to add Pulleys, Drives, loading Hoppers

• Calculate concave and convex Vertical Curves including belt lift off radii, edge tensions and centre tensions

• Horizontal Curve calculations - design curved conveyors including banking angle and belt drift calculations for all operating conditions

• Calculate using CEMA, ISO 5048 or the new Viscoelastic method for low resistance rubber belts

• Add any number of Conveyor Pulleys, Drives, Loading points, Trippers, Brakes etc.

• Over 70 reports can be viewed, printed or exported to Word, PDF files or Excel etc.

• You can merge multiple selected reports into a single PDF file.

• Delta-T6 has been completely re-written in Microsoft Visual Studio and uses the latest software development tools from Microsoft. It is written in a development language called C# and uses the MS Common Language Runtime compiled for .Net with xml data. This technology is the latest available from Microsoft and this makes it compatible with the latest operating systems including Windows XP, Vista and Windows 7 and also 32bit and 64bit systems.

• Click New Features in Helix delta-T6  for more details

Dynamic analysis module - Helix delta-T has a full flexible body conveyor dynamic analysis version.

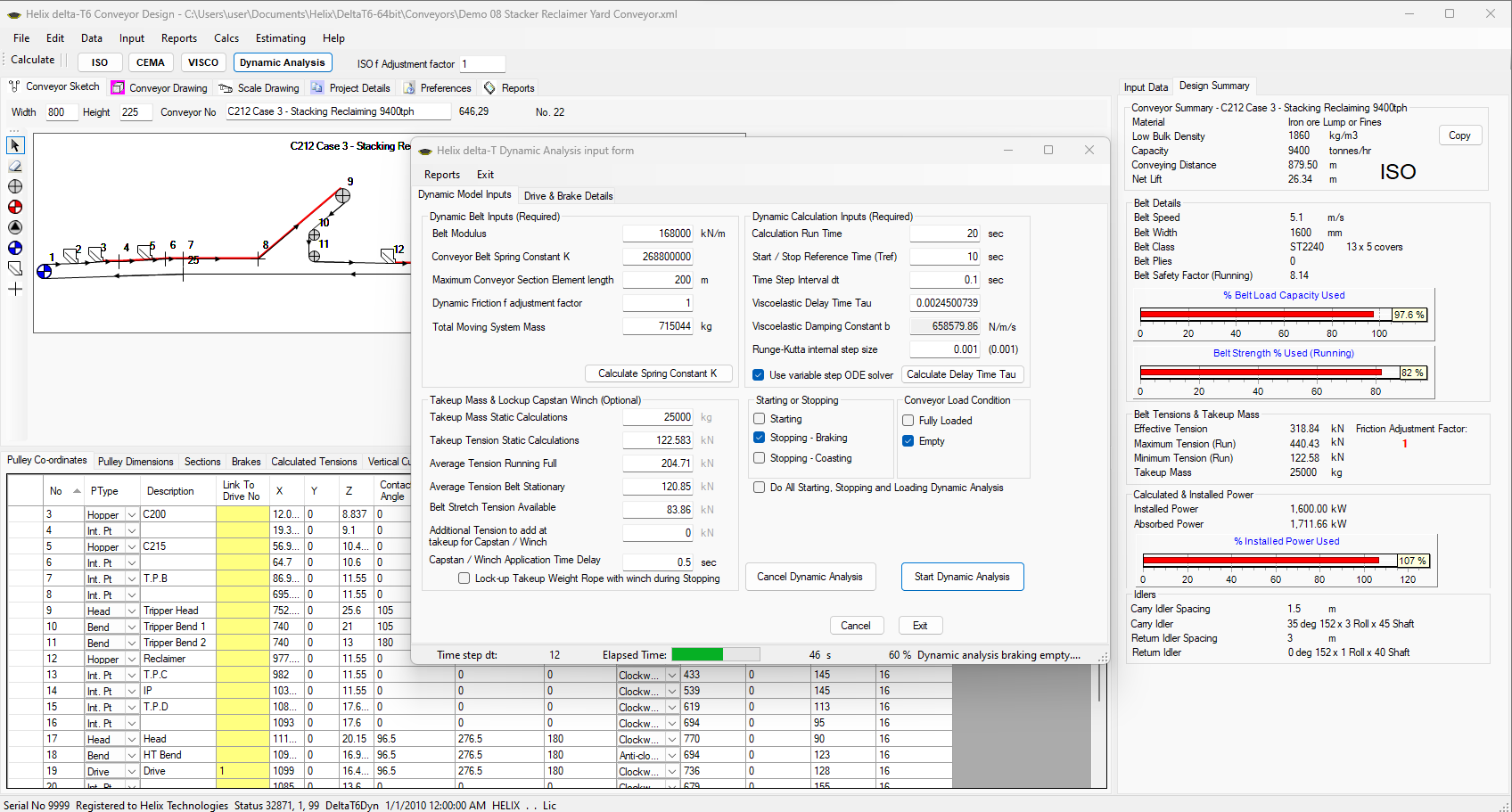

The Dynamic Analysis version calculates the transient belt Tensions and Velocities during starting and stopping of a conveyor. It can model the conveyor belt transient behaviour during Starting Fully Loaded, Starting Empty, Stopping Fully Loaded and Stopping Empty. The program allows the user to input any number of Drives or Brakes and allows for input of Drive Torque / Speed curves, Delay times, Braking Torques, Flywheels and inertia effects. After the Dynamic Calculations have been performed, the user can view and Print two dimensional and surface plot three dimensional graphs for Belt Tensions, Belt Velocities, Strain rates and Takeup movement versus time step for all points along the conveyor.

Helix delta-T has been used as the design tool and proven in many hundreds of real conveyor installations in more than 25 countries around the world for than 18 years. The latest version Helix delta-T 6 brings you even more power and flexibility in your conveyor designs.



The program will automatically calculate the belt tensions in the system, select a suitable belt from the database, calculate the pulley and shaft sizes required, select a suitable electric motor, fluid coupling and gearbox from the databases, calculate the idler shaft deflections and bearing life and then present the full conveyor design in reports which can be viewed, printed or exported to Word for Windows®, Excel®, PDF® files and other applications.

Typical design Report - can be printed or exported to Word®, Excel®, PDF® files and other applications.

Belt tensions can be viewed graphically, and the Calc section provides useful procedures for calculating discharge trajectories, vertical curve radii and other frequently performed routines. Context sensitive on screen Help will guide you through the operating procedures and provide the formulae used in the calculations.

You can also create and view a 3D model of the conveyor. The program also allows you to calculate vertical and Horizontal curve geometry for the conveyor.

Drag and Drop Pulleys etc. into your conveyor

In addition, delta-T provides an in-depth analysis of conveyor belt tensions under different operating conditions such as running fully loaded, running empty, starting fully loaded, starting empty, braking fully loaded, braking empty and coasting. A new sketch facility allows users to sketch the conveyor profile and enter data in tabular format.

delta-T will save you time and reduce your plant capital, maintenance and operating costs.

Getting Started and Help file - you can download a copy of the Helix delta-T6 Help file Helix delta-T6 Help file. This has a detailed view of the program including how to draw a conveyor, input the data, perform the design calculations and to fine tune the design and print the reports.

Helix delta-T has been used as the design tool and proven in many hundreds of real conveyor installations in more than 25 countries around the world for more than 10 years. The latest version Helix delta-T 5 brings you even more power and flexibility in your conveyor designs.

The program will automatically calculate the belt tensions in the system, select a suitable belt from the database, calculate the pulley and shaft sizes required, select a suitable electric motor, fluid coupling and gearbox from the databases, calculate the idler shaft deflections and bearing life and then present the full conveyor design in reports which can be viewed, printed or exported to Word for Windows, Excel, PDF files and other applications.

Quick Calculations - the program includes a number of additional calculations, including:

• Belt Feeder / Hopper pullout calculations.

• Troughed Belt Transition length calculations

• Discharge Trajectory Calculations

• Vertical Curves, Horizontal Curves

• Estimating and Equipment Schedules

Technical Support and Training

Helix Technologies offers Technical Support and Maintenance. This support allows you to contact us by phone or email with your questions about the software and also technical advice -  we will review your design file and advise the best way to optimise your conveyor design. It also includes maintenance upgrades of the software. The cost of the support is 15% of the software list price per year. Renewal of the support is optional.
